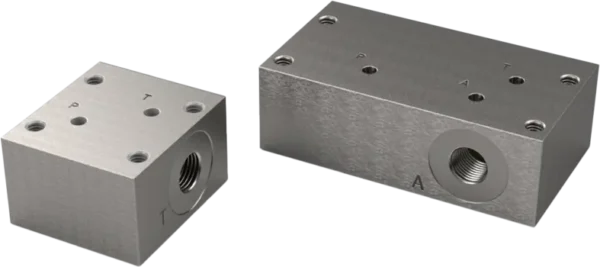

Size 4 connection plates are suitable for connecting valves from the WVH-4B and WVH-4B-Bi series to pipelines.
Product Description
- Max. operating pressure: 700 bar
- Max. flow rate: 12 l/min
- Size: Size 4 to Bieri standard
Industries & Applications
For lengthwise linking or individual connection of the WVH-4B-Bi series valves.
Mounting
Available as individual connection and connection plate, the consumer connections A and B are each led out individually at the side, with 1/4″ and 3/8″ connections
Part no. 3763413
Part no. 3832498
