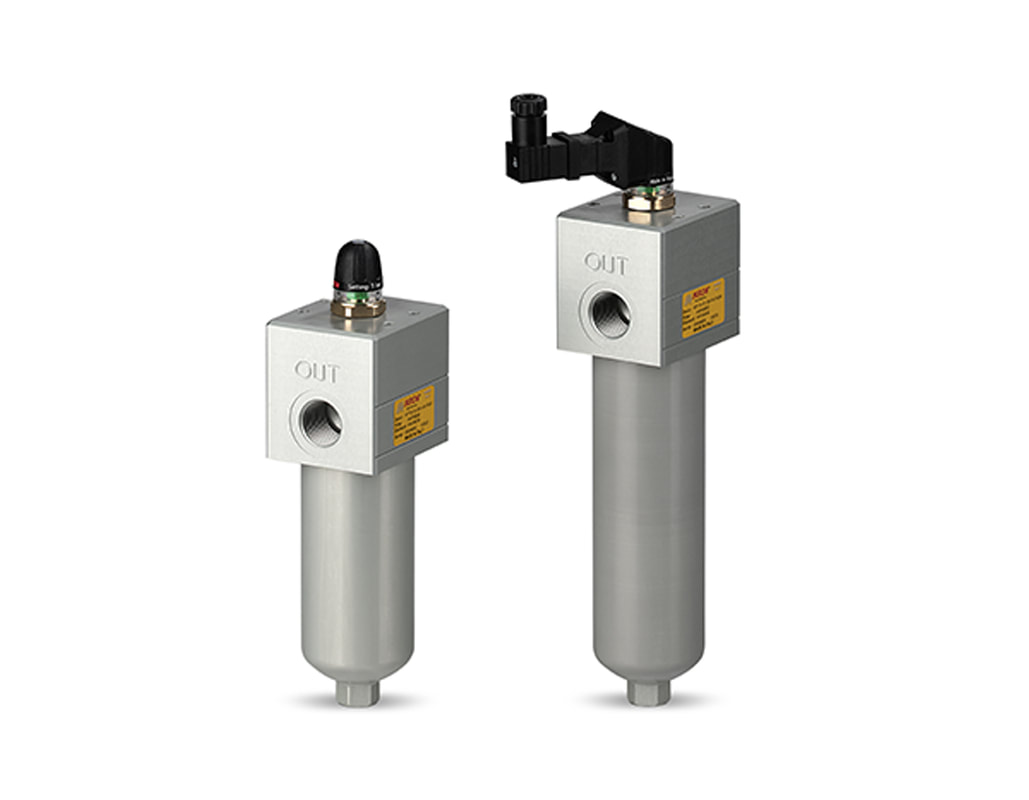

Ikron HF-710 Inline Filter
Ikron HF710 high pressure filters are mounted on the pressure line of the circuit and protect the system components from contaminant particles.
The aluminum housing ensures lightness and high-level performances.
In line high pressure filters with aluminum head and bowl for light weight purposes.
The aluminum housing ensures lightness and high-level performances.
In line high pressure filters with aluminum head and bowl for light weight purposes.
Product Description
Maximum flow: 12.4 gpm (47 l/min)
Maximum working pressure: 3626 psi (250 bar)
Filter media:
Microfiber 3, 6, 10, 25 micron
Ikron HF-710 Specs
Construction:
- Head made of anodized aluminum
- Bowl made of anodized aluminum
- Seals Buna – Viton
- End cap made of zinc plated steel
- Inner tube made of zinc plated steel
- Filter media – inorganic micro-fibre glass
Fluid Compatibility:
Conforming to ISO 2943 (Norm ISO 6743/4)
- Mineral Oil (With Buna seals)
- HH
- HL
- HM
- HR
- HV
- HG
- Water emulsion (With Buna seals)\
- HFAE
- HFAS
- Water glycol (With Buna seals)
- HFC
- Synthetic fluid (With Viton seals)
- HS
- HFDR
- HFDU
- HFDS
Flow:
- Flow max. 12.4 US gpm (47 l/min)
Pressure Ratings:
- Working pressure 3626 psi (250 bar)
- Testing pressure 5439 psi (375 bar)
- Burst pressure 7252 psi (500 bar)
- Element collapse pressure rating (conforming to ISO 2941)
- 290 psi (20 bar) (version LC)
- 3045 psi (210 bar) (version HC)
Bypass Valve:
- By-pass setting 87 psi (6 bar)
Operating Temperatures:
- With Buna seals -30 90 °C
- With Viton seals -20 110 °C
Durability:
- 1.000.000 cycle
- 0 3626 psi (0 250 bar)
Indicators:
- Visual differential indicator
- Visual electrical differential indicator
- Visual electrical differential indicator with thermostat
Degree of Filtration:
Multi-pass test conforming to ISO 16889 (regulation in force). Contaminant ISO MTD – final p 87 psi (6 bar)
- FG003 – 5 μm
- FG006 – 7 μm
- FG010 – 10 μm
- FG025 – 21 μm
- FG003 – 3 μm
- FG006 – 6 μm
- FG010 – 10 μm
- FG025 – 25 μm
