Moog Flotork
Progressive Power & Control is an Indiana distributor of Moog Flo-tork rack & pinion type rotary actuators. Flotork provides high performance hydraulic rack and pinion rotary actuators for industrial applications. Available in US and metric sizes.
Product Description

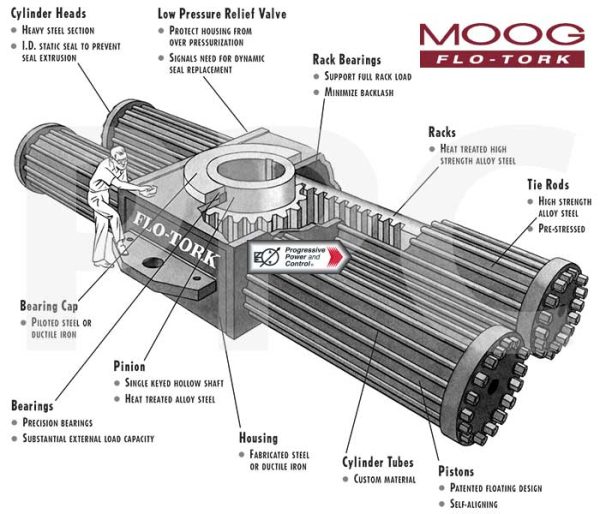

Moog Flo-Tork MegaTork hydraulic actuators
Flo-Tork MegaTork Actuator Models:
- Model 1M – Torque Factor = 333
- Model 1.5M – Torque Factor = 500
- Model 2M – Torque Factor = 667
- Model 3M – Torque Factor = 1,000
- Model 4M – Torque Factor = 1,333
- Model 5M – Torque Factor = 1,667
- Model 6M – Torque Factor = 2,000
- Model 7M – Torque Factor = 2,333
- Model 8M – Torque Factor = 2,667
- Model 9M – Torque Factor = 3,000
- Model 10M – Torque Factor = 3,333
- Model 15M – Torque Factor = 5,000
- Model 20M – Torque Factor = 6,667
- Model 25M – Torque Factor = 8,333
- Model 30M – Torque Factor = 10,000
- Model 40M – Torque Factor = 13,333
- Model 50M – Torque Factor = 16,667
Standard Features
- Heavy Duty Hydraulic – 3,000 Psi Max.
- Torque Range – 1,000,000-50,000,000 Lb.-in.
- Standard Rotations – 90, 180, 360 Degrees
- Rack & Pinion – High Mechanical Efficiency
- Zero Leakage – High Volumetric Efficiency
- Piston Seals – Pre-loaded Lip Seals
- Gearing – Single Tooth Full Load Capacity
- Hollow Shaft – Eliminates Costly Coupling
- Compact Design – Highest Torque Per Cu. Ft. Of Space
- Temperature Range – 0 To 200 Degrees F
Options
- Adjustable Cushions
- Tie Rod Or Mill Type Cylinders
- Custom Rotational Arcs
- Custom Mounting Arrangements
- Custom End Cap Valves And Ports
- Self Contained Hydraulic Power Units
- Custom Mountings
- Custom Shaft Configuration
- Custom Designs For Pressure, Torque, And Dimensional Requirements
- Custom Corrosion Protection
- Designs For 4:1 Pressure Vessel Safety Factor
