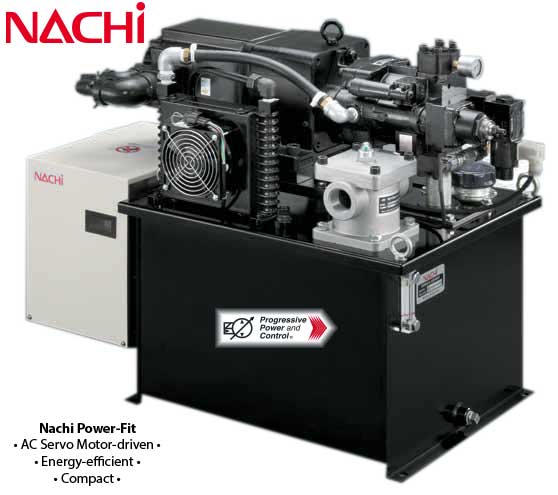

NachThe Nachi Power-fit uses two variable displacement piston pumps driven by an AC servo motor for precise pressure and flow control. The Nachi pump models used are the PVS and PZS pumps. The power unit is customizable with 16 combination settings of pressure and flow utilizing a digital control panel.
Product Description
- Up to 80% Energy Savings over conventional hydraulic power units
- High pressure: PVS pump – 25MPa / 3625 PSI ; PZS pump – 28MPa / 4060 PSI
- High flow: PVS pump – 90L/min / 23.8GPM ; PZS pump – 140L/min (37.0GPM)
- Compacy: Available with a 15.9 gal or 21.2 gal reservoir
- Low Noise
- Cool operation
Model Numbers:
- NPQ-60E-55PV45N3A2-6161A
- NPQ-80E-75PZ70N4A2-6161A
