Product Description

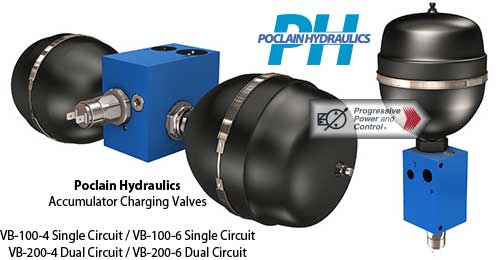

VB-100-4 Single Circuit
- Max. pressure: bar 210 / PSI 3045
- Flow rate to auxiliaries: l/min 45 / GPM 11.9
- Max. flow rate to accumulator: l/min 15 / GPM 4.0
- Connection: 9974 (Metric) and ISO 11926 (UNF)
VB-100-6 Single Circuit
- Max. pressure: bar 210 / PSI 3045
- Flow rate to auxiliaries: l/min 120 / GPM 31.7
- Max. flow rate to accumulator: l/min 15 / GPM 4.0
- Connection: 9974 (Metric) and ISO 11926 (UNF)
VB-200-4 Dual Circuit
- Max. pressure: bar 210 / PSI 3045
- Flow rate to auxiliaries: l/min 45 / GPM 11.9
- Max. flow rate to accumulator: l/min 15 / GPM 4.0
- Connection: 9974 (Metric) and ISO 11926 (UNF)
VB-200-6 Dual Circuit
- Max. pressure: bar 210 / PSI 3045
- Flow rate to auxiliaries: l/min 120 / GPM 31.7
- Max. flow rate to accumulator: l/min 15 / GPM 4.0
- Connection: 9974 (Metric) and ISO 11926 (UNF)
