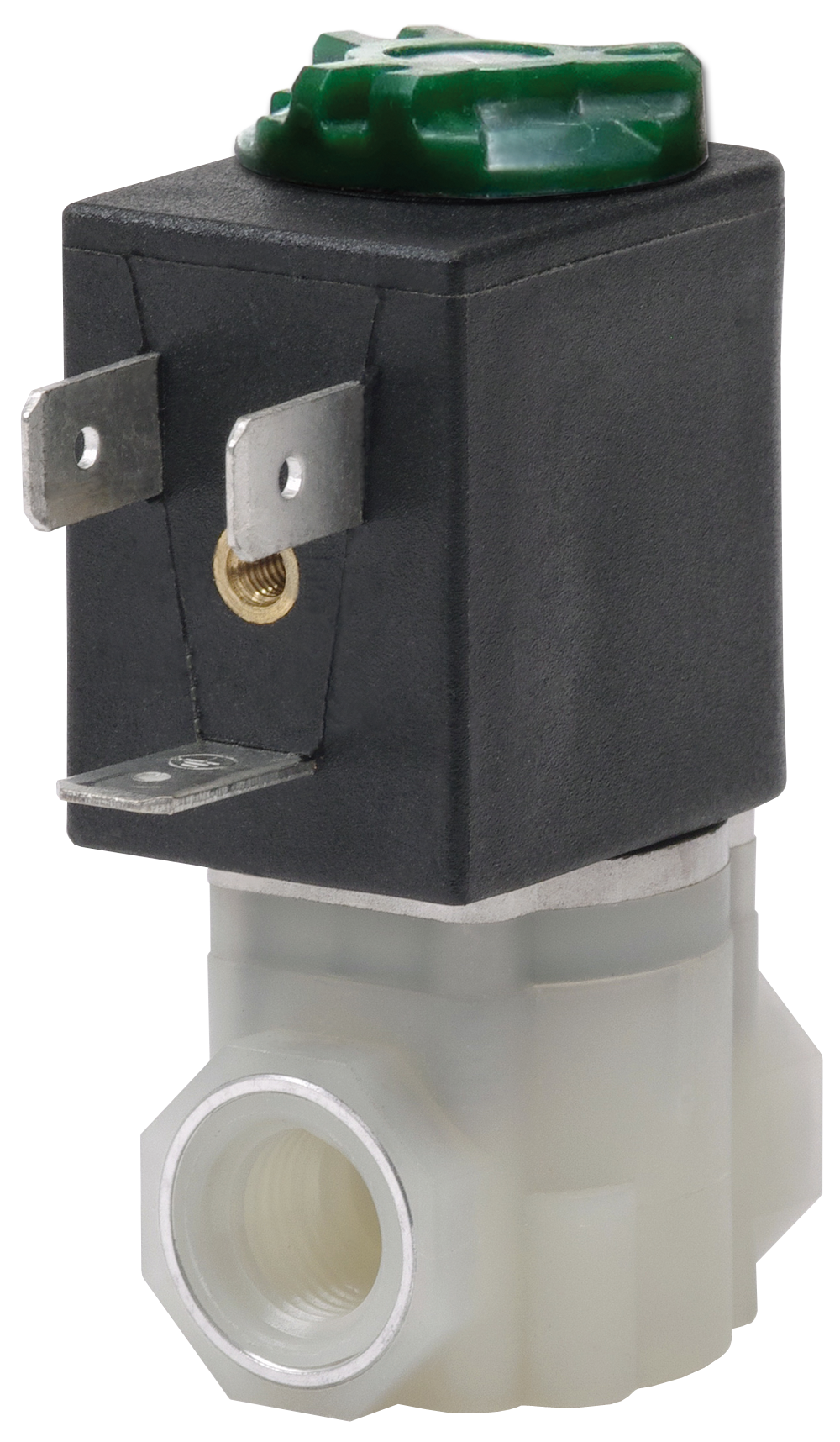

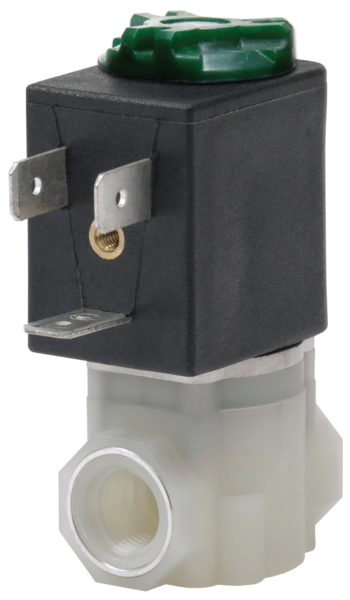

The Spartan Scientific Series 3B23 is a compact, media separated 2-Way Normally Closed solenoid valve for use with air, chemicals, gases or water whereby the media is contained in the nylon body valve cavity and does not come into contact with the metal parts of the solenoid operator.
Product Description
The 3B23 features a long life solenoid that incorporates a fully encapsulated coil, stainless steel plunger and tube assembly as well as a rolling diaphragm which enables the valve to function at pressures up to 120 psi with orifice size of 1.2mm and a flow rate of 0.06Cv. The single in-line valve body features metal reinforced 1/8”NPT threads and has an ultra small volume and simple flow path for clean switching. The valve is available in all standard voltages and comes standard with a 6.5 watt coil.
