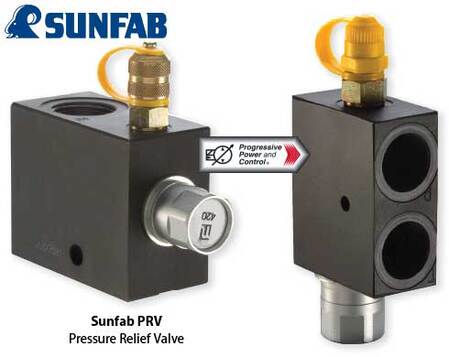

Sunfab PRV Inline Pressure Relief Valve

Sunfab PRV Inline Pressure Relief Valve

All hydraulic systems require a pressure relief valve to protect the pump and hydraulic system from damage or unsafe operating conditions due to excessive constant pressure or pressure surges.

Product Description

  • In-line mounted pressure relief valve
  • Pressures: 25,5-32/32–42 MPa
  • Fl ow capacity: 150 l/min.
  • Preset opening pressure of 32/42 MPa
  • Each turn adjusts the pressure by 13 MPa
  • Pressure gauge socket for easy adjustment and troubleshooting

Part Numbers:

  • PRV-32/42-3/4 – Maximum pressure = 420 Bar
  • PRV-32/42-G1 – Maximum pressure = 420 Bar
  • PRV-32-3/4 – Maximum pressure = 320 Bar
  • PRV-32-G1 – Maximum pressure = 320 Bar
