Benefits:
- High pressure
- High self-priming rate
- High power-to-weight-ratio excellent for mobile applications
- Quiet operation
- Externally drained for optimum cooling
- Available in right hand and left hand rotation
- Adjustable flow from 0 to the maximum displacement for that model
- Flow quickly reset when altered

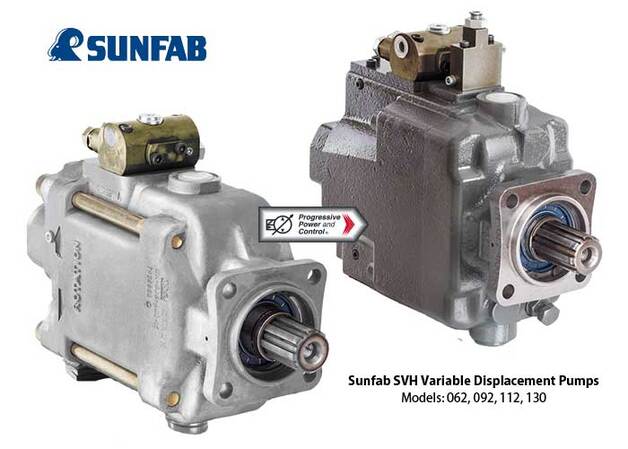

Product Description
- SVH-062
- SVH-092
- SVH-112
- SVH-130
Controller types:
- LSNR: Load-Sensing controller with pressure limiter
- NR: Pressure controller directly adjustable on the pump
- ZL: Intermediate plate with torque limitation power controller (062, 092, 112)
- L: Torque limitation power controller (130)
Mounting flanges:
- SAE A 2-hole flange
- SAE B 2-hole flange
- SAE B 4-hole flange
- SAE C 2-hole flange
- SAE C 4-hole flange
- ISO 7653-1985
- ISO 7653-1985 10°
- ISO 3019-2
- ISO 3019-1
- SAE-B-2-Hole-45°offset
- J 744 ISO 3019-1
Shaft designs:
- Splined shafts – DIN ISO 14 for trucks
- Spline shaft DIN 5480 – only for SVH 092 and SVH 112
- Spline shaft SAE-C J 744
- Spline shaft SAE-B J 744 only for SVH 062
- Spline shaft SAE-B-B J 744 only for SVH 062
- Spline shaft SAE-B J 744 short – only for SVH 062
- Spline shaft SAE-C S only for SVH 112 and SVH 130
