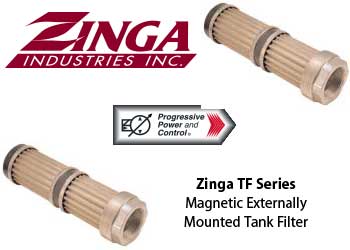

TF Magnetic Externally-mounted Tank Filter (Strainer)

Product Description

• Style A: Male threads. One wire cloth element. Magnet with polarizing steel end plates.
• Style B: Male threads. Two wire cloth elements. Magnet with polarizing steel end plates.
• Style C: Male threads. Two wire cloth elements. Two magnets with polarizing steel end plates.
• Style D: Male threads. Three wire cloth elements. Two magnets with polarizing steel end plates.
• Port Sizes: 1” through 3” NPTF, SAE-20 and SAE-24
• Media: 100 Mesh Standard
• Optional Bypass: 3 psi (6” Hg) or 5 psi (10” Hg)
• Operating Temperature: Up to 250° F
• Flow at 5 ft/second: 5 GPM to 116 GPM
