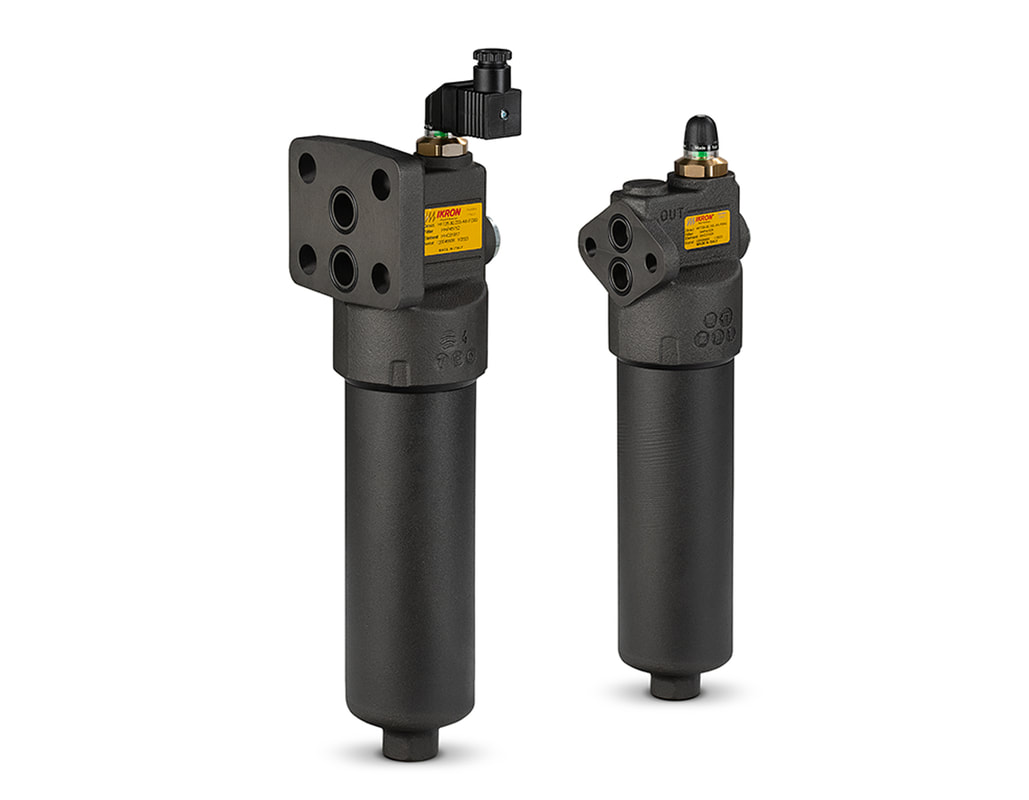

Ikron HF735 high pressure filters are mounted on the pressure line of the circuit and protect the system components from contaminant particles.
The Manifold connection allows the direct assembly on valve blocks through the fixing flange.
In line high pressure filters with Manifold connection.
Product Description
Maximum flow: 39.6 gpm (150 l/min)
Maximum working pressure: 4640 psi (320 bar)
Filter media:
Microfiber 3, 6, 10, 25 micron
Ikron HF-735 Specs
Construction:
- Head
- Spheroidal cast iron
- GS 450-10 UNI ISO 1083
- Bowl Extruded steel
- Seals Buna – Viton
- End cap Zinc plated steel
- Inner tube Zinc plated steel
- Filter media – Inorganic micro-fibre glass
Fluid Compatibility: Conforming to ISO 2943 (Norm ISO 6743/4)
- Mineral Oil (With Buna seals)
- HH
- HL
- HM
- HR
- HV
- HG
- Water emulsion (With Buna seals)
- HFAE
- HFAS
- Water glycol (With Buna seals)
- HFC
- Synthetic fluid (With Viton seals)
- HS
- HFDR
- HFDU
- HFDS
Flow:
- Flow max. 40 US gpm (150 l/min)
Pressure Ratings:
- Working pressure 4640 psi (320 bar)
- Testing pressure 6960 psi (480 bar)
- Burst pressure 9280 psi (640 bar)
- Element collapse pressure rating
- 290 psi (20 bar) (version LC)
- 3045 psi (210 bar) (version HC)
Bypass Valve:
- By-pass setting 87 psi (6 bar)
Operating Temperatures:
- With Buna seals: -22 to 195 °F (-30 to 90 °C)
- With Viton seals: -42 to 30 °F (-20 to 110 °C)
Durability:
- 1.000.000 cycle
- 0 4640 psi (0 320 bar)
Indicators:
- Visual differential indicator
- Visual electrical differential indicator
- Visual electrical differential indicator with thermostat
Degree of Filtration:
- FG003 5 μm
- FG006 7 μm
- FG010 10 μm
- FG025 21 μm
- FG025 25 μm
