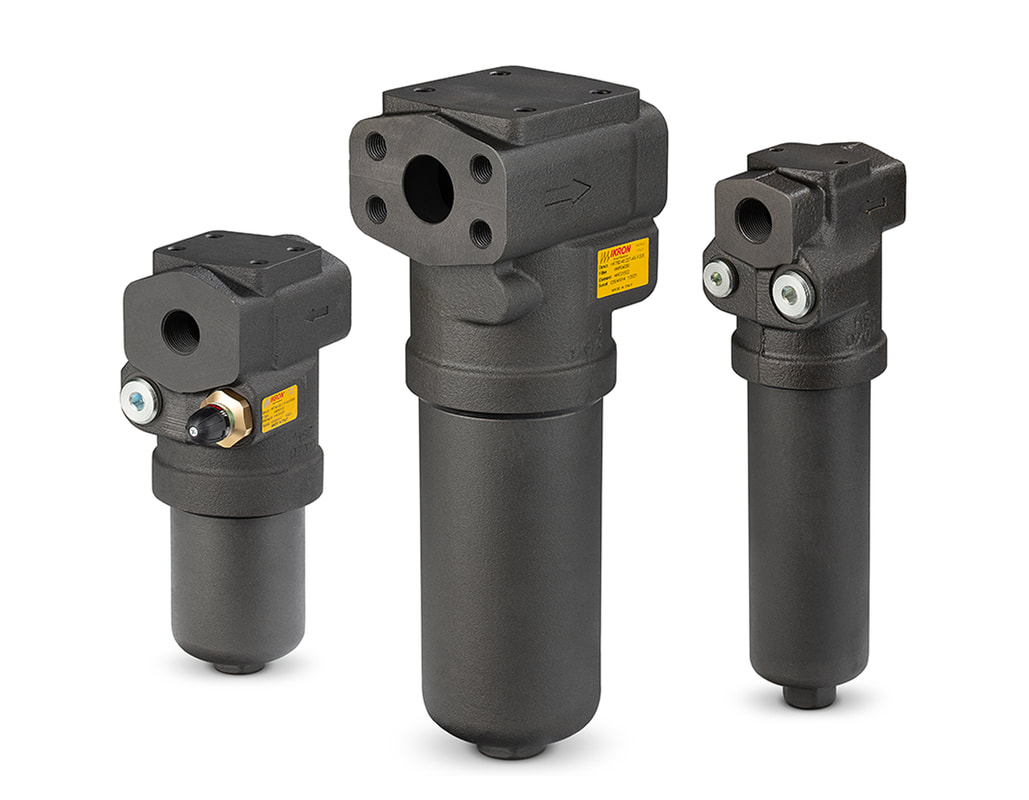

Ikron HF-760/761 Inline High-pressure Filter
Ikron HF760 high pressure filters are mounted on the pressure line of the circuit and protect the system components from contaminant particles.
Various threads are available such as SAE3000 and SAE6000 flanged ports.
In line high pressure filters with threaded and flanged connections.
Various threads are available such as SAE3000 and SAE6000 flanged ports.
In line high pressure filters with threaded and flanged connections.
Product Description
Maximum flow: 118.9 gpm (450 l/min)
Maximum working pressure: 6090 psi (420 bar)
Filter media:
Microfiber 3, 6, 10, 25 micron
Ikron HF-760/761 Specs
Construction:
- Head made of spheroidal cast iron
- Bowl made of extruded steel
- Seals Buna – Viton
- End cap made of zinc plated steel
- Inner tube made of zinc plated steel
- Filter media – Inorganic micro-fibre glass
Fluid Compatibility:
- Oil mineral (With Buna seals)
- HH
- HL
- HM
- HR
- HV
- HG
- Water emulsion (With Buna seals)
- HFAE
- HFAS
- Water glycol (With Buna seals)
- HFC
- Synthetic fluid (With Viton seals)
- HS
- HFDR
- HFDU
- HFDS
Flow:
- Flow max. 120 US gpm (450 l/min)
Pressure Rating:
- Working pressure 6090 psi (420 bar)
- Testing pressure 8700 psi (600 bar)
- Burst pressure 18275 psi (1260 bar)
- Element collapse pressure rating:
- 290 psi (20 bar) (version LC)
- 3045 psi (210 bar) (version HC)
Bypass Valve:
- By-pass setting 87 psi (6 bar)
