When installed from large to small according to frame size and delivery, multi-flow pumps can be created using IPVP pumps of the same or different sizes. IPVP pumps are available as two-flow and three-flow pumps. Four-flow pumps can be custom ordered.
Product Description
Model numbers:
- IPVP 3 – 3.5
- IPVP 3 – 5
- IPVP 3 – 6.3
- IPVP 3 – 8
- IPVP 3 – 10
- IPVP 4 – 13
- IPVP 4 – 16
- IPVP 4 – 20
- IPVP 4 – 25
- IPVP 4 – 32
- IPVP 5 – 32
- IPVP 5 – 40
- IPVP 5 – 50
- IPVP 5 – 64
- IPVP 6 – 64
- IPVP 6 – 80
- IPVP 6 – 100
- IPVP 6 – 125
- IPVP 7 – 125
- IPVP 7 – 160
- IPVP 7 – 200
- IPVP 7 – 250

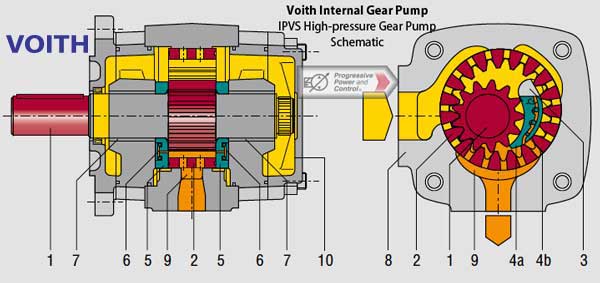

- 1) Pinion shaft
- 2) Internal gear
- 3) Filler pin
- 4a) Filler segment carrier
- 4b) Filler sealing segment
- 5) Axial disc
- 6) Axial pressure area
- 7) Plain bearings
- 8) Housing
- 9) Hydrostatic bearing
- 10) End cover
- Dark gray = Suction Chamber
- Light gray = Pressure Chamber
