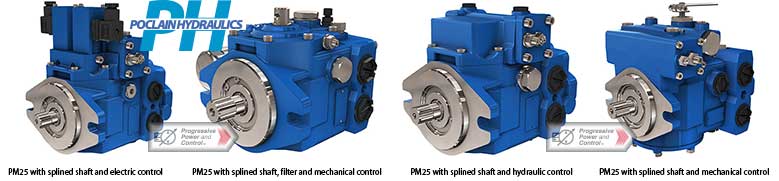

Pump types available with Poclain model PM-25:
- Splined shaft with electrical control
- Splined shaft with hydraulic control
- Splined shaft with mechanical control
- Splined shaft with filter and mechanical control
Product Description
Control types available with Poclain PM25 pumps:
- Direct Mechanical
- Mechanical servo control
- Hydraulic servo control
- Hydraulic servo control with feed-back
- Hydraulic automotive control
- Electrical on-off servo control with return springs
- Electrical on-off servo control without return springs
- Electro-proportional servo control
Poclain PM25-20
- Max. pressure: bar 350 / PSI 5076
- Max. Displacement: cm3/rev. 20 / Cu.in/rev. 1.2
- Max. rotation speed: rpm 3600
- Max. power: kW 42 / HP 57
- Mounting Flange: SAE B and SAE BB
Poclain PM25-25
- Max. pressure: bar 350 / PSI 5076
- Max. Displacement: cm3/rev. 25 / Cu.in/rev. 1.5
- Max. rotation speed: rpm 3600
- Max. power: kW 42 / HP 57
- Mounting Flange: SAE B and SAE BB
Poclain PM25-28
- Max. pressure: bar 350 / PSI 5076
- Max. Displacement: cm3/rev. 28 / Cu.in/rev. 1.7
- Max. rotation speed: rpm 3600
- Max. power: kW 42 / HP 57
- Mounting Flange: SAE B and SAE BB
