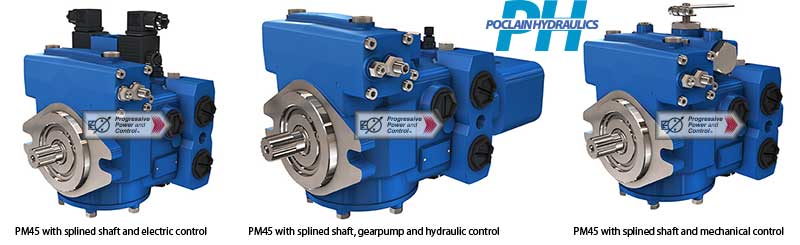

PM45 Pump Types:
- Splined shaft with electric control
- Splined shaft with mechanical control
- Splined shaft with gear pump and hydraulic control
Product Description
PM45 Control Types:
- Mechanical servo control
- Hydraulic servo control
- Hydraulic servo control with feed-back
- Hydraulic automotive control
- Electrical on-off servo control with return springs
- Electrical on-off servo control without return springs
- Electro-proportional servo control
- Electro-proportional servo control with feed-back
Poclain PM45-35
- Max. pressure: bar 350 / PSI 5076
- Max. Displacement: cm3/rev. 35 / Cu.in/rev. 2.1
- Max. rotation speed: rpm 3600
- Max. power: kW 78 / HP 105
- Mounting Flange: SAE B and SAE BB
Poclain PM45-40
- Max. pressure: bar 350 / PSI 5076
- Max. Displacement: cm3/rev. 40 / Cu.in/rev. 2.4
- Max. rotation speed: rpm 3600
- Max. power: kW 78 / HP 105
- Mounting Flange: SAE B and SAE BB
Poclain PM45-45
- Max. pressure: bar 350 / PSI 5076
- Max. Displacement: cm3/rev. 45 / Cu.in/rev. 2.8
- Max. rotation speed: rpm 3600
- Max. power: kW 78 / HP 105
- Mounting Flange: SAE B and SAE BB
Poclain PM45-52
- Max. pressure: bar 350 / PSI 5076
- Max. Displacement: cm3/rev. 52 / Cu.in/rev. 3.2
- Max. rotation speed: rpm 3600
- Max. power: kW 78 / HP 105
- Mounting Flange: SAE B and SAE BB
