The Poclain PM series pumps are designed for use in closed loop hydrostatic transmissions. These variable displacement axial piston pump are built on a swashplate, providing continuously variable flow rate between zero flow and maximum flow in both forward and reverse, with the flow rate determined by rotation speed and angle of the swashplate. High-pressure relief valves included. Options include: auxiliary gear pumps, single or tandem pumps, a charge pump to maintain circuit pressure, a charge pressure line filter, flushing valves, etc.
Product Description

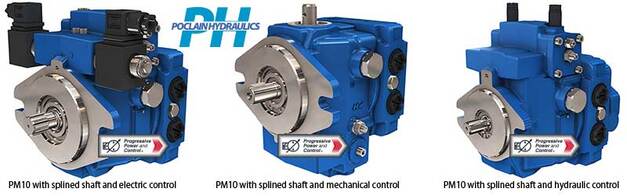

Pump types available with Poclain model PM-10
- Splined shaft with electrical control
- Splined shaft with mechanical control
- Splined shaft with hydraulic control
Control types available on PM-10 pumps:
- Direct Mechanical
- Direct mechanical with spring return
- Mechanical servo contol
- Hydraulic servo control
- Hydraulic automotive control
- Electrical on-off servo control with return springs
- Electrical on-off servo control without return springs
- Electro-proportional servo control
Poclain PM10-07
- Max. pressure: bar 350 / PSI 5076
- Max. Displacement: cm3/rev. 7 / Cu.in/rev. 0.4
- Max. rotation speed: rpm 3600
- Max. power: kW 31 / HP 42
- Mounting Flange: SAE A and SAE B
Poclain PM10-09
- Max. pressure: bar 350 / PSI 5076
- Max. Displacement: cm3/rev. 9 / Cu.in/rev. 0.6
- Max. rotation speed: rpm 3600
- Max. power: kW 31 / HP 42
- Mounting Flange: SAE A and SAE B
Poclain PM10-11
- Max. pressure: bar 350 / PSI 5076
- Max. Displacement: cm3/rev. 11 / Cu.in/rev. 0.7
- Max. rotation speed: rpm 3600
- Max. power: kW 31 / HP 42
- Mounting Flange: SAE A and SAE B
Poclain PM10-14
- Max. pressure: bar 350 / PSI 5076
- Max. Displacement: cm3/rev. 14 / Cu.in/rev. 0.8
- Max. rotation speed: rpm 3600
- Max. power: kW 31 / HP 42
- Mounting Flange: SAE A and SAE B
Poclain PM10-18
- Max. pressure: bar 350 / PSI 5076
- Max. Displacement: cm3/rev. 18 / Cu.in/rev. 1.1
- Max. rotation speed: rpm 3600
- Max. power: kW 31 / HP 42
- Mounting Flange: SAE A and SAE B
Poclain PM10-21
- Max. pressure: bar 350 / PSI 5076
- Max. Displacement: cm3/rev. 21 / Cu.in/rev. 1.3
- Max. rotation speed: rpm 3600
- Max. power: kW 31 / HP 42
- Mounting Flange: SAE A and SAE B
