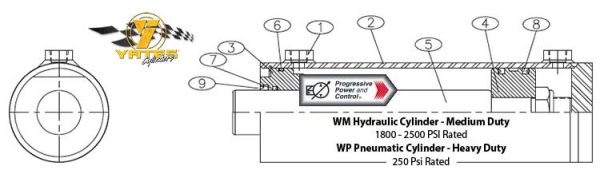

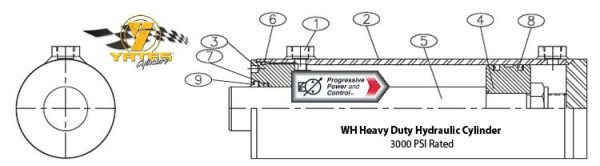

NPTF ports are standard. SAE ports are also available. Ports can be rotated to any position.
Micro-polished, 1026 steel cylinder barrel with minimum drag for long piston bearing life and maximum seal.
Threaded iron rod gland provides bearing support and durability.
O-ring sealed piston is made in one piece of ductile iron, providing strength and durability against shock loads.
Chrome-plated piston rod made of C1045 steel offers 75,000psi yield.
High-durometer gland o-ring seal with backup for leak-free performance.
Urethane rod seals are standard. Viton seals are also available.
O-ring piston seals with wear bands are standard. Step cut cast iron rings, Viton seals, and hi-load seals are also available.
Urethane wiper functions as a secondary seal, keeping out contaminates. For compatibility with other fluids or higher temperatures (to 400°F), a Viton wiper is available. Metallic scrapers and low friction wipers are also available.
